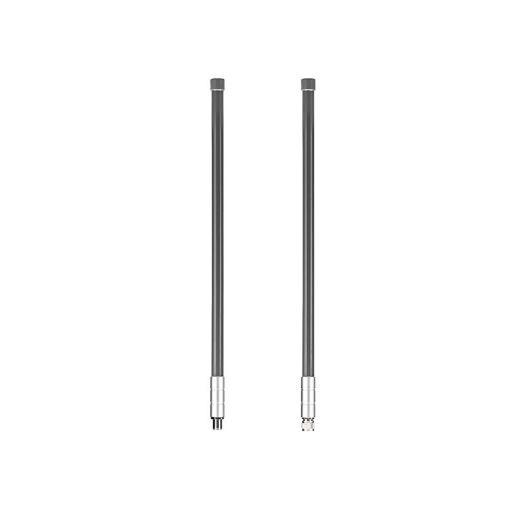

2.3-2.7GHz 8dBi 4G LTE WIFI Omni Directional Fiberglass Antenna

Product Categories

Shenzhen AMEISON Communication Equipment Co.,Ltd.

Contact Now

Name: 2327GHz 8dBi 4G LTE WIFI Omni Directional Fiberglass Antenna
Brand: AMEISON
Price: 1 USD

Place of Origin : China

Brand Name : AMEISON

Model Number : AMXF-2327-8

Certification : ISO 9001: 2008

Price : EXW Price

Packaging Details : bubble PP bag or EPE/inner box/master carton(safe export packaging) or others

Delivery Time : 10-20 working days

Payment Terms : TT,Paypal,Western Union

Supply Ability : 50,000 Pieces per Month

MOQ : 100

Frequency range（MHz） : 2300～2700

Bandwidth（MHz） : 100

Gain（dBi） : 8

VSWR : ≤2.0

Polarization : Vertical

Lightning protection : DC Ground

Input connector type : N Female or Requested

Mounting way : Pole-holding

Contact Now

2.3-2.7GHz 8dBi 4G LTE WIFI Omni Directional Fiberglass Antenna

Feature:

Exquisite appearance

Good impact resistance,waterproofing and anticorrosion ability

Full day working

Optimized dimension

High gain,low standing wave,strong anti-interference ability

Application:

2.4G/WIFI/WLAN/LTE system

Point-to-multipoint system

AMXF-2327-8 Electrical Specifications
Frequency range(MHz)	2300-2690
Bandwidth (MHz)	390
Gain (dBi)	8
Half-power beam width(°)	H:360 V:12
VSWR	≤1.5
Input Impedance(Ω)	50
Polarization	Vertical
Maximum input power(W)	100
Lightning protection	DC Ground
Input connector type	N Female or Requested
Mechanical Specifications
Dimensions (mm)	Φ20*550
Antenna weight(kg)	0.3
Operating temperature(°c)	-40～60
Rated Wind Velocity(m/s)	60
Radome color	Gray
Mounting way	Pole-holding
Mounting hardware(mm)	￠35-￠50
