4.9-5.8GHz 2x18dBi Dual Polarized Outdoor Wireless Antenna

Product Categories
Shenzhen AMEISON Communication Equipment Co.,Ltd.
Contact Now

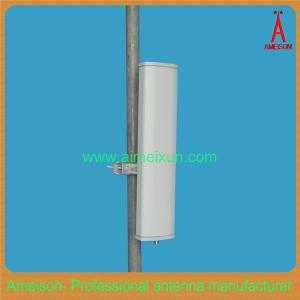

4.9-5.8GHz 2x18dBi Dual Polarized Outdoor Wireless Antenna

Place of Origin : China

Brand Name : AMEISON

Model Number : AMXW-4958VH-D18L60

Certification : ISO 9001: 2008

Frequency range（MHz） : 4900～5850

Polarization : Vertical and Horizontal

Gain（dBi） : 2×18

Lightning protection : DC Ground

Input connector type : 2-N Female

Price : EXW Price

Packaging Details : PP bag /inner box/master carton or customized

Delivery Time : 10-20 working days

Payment Terms : TT,Paypal,Western Union

Supply Ability : 50,000 Pieces per Month

MOQ : 100

Contact Now

Wireless Antenna Outdoor
Factory price
All weather operation
Included Mounting bracket
Heavy-duty UV-Resistant Radome
4.9-5.8GHz Dual Polarized 18dBi Wireless Antenna Outdoor
Model No.:AMXP-4958VH-D18L60
Superior Performance
The AMXP-4958VH-D18L60 Flat Panel Antenna combines vertical and horizontal polarization with high gain over
multiple frequencies in a single enclosure. It is a professional quality antenna designed primarily for MIMO point-to-multipoint and point-to-point applications in the 4.9 GHz and 5.8 GHz frequency bands.
This antenna incorporates advanced dual polarization technology that allows for the interoperability of two radios totransmit and receive paths. This technology allows for the attenuation of unwanted signals from adjacent channelsand/or co-located equipment.
Rugged and Weatherproof
This aesthetically pleasing antenna features a heavy-duty UV-resistant plastic radome ideal for all-weather indoor
and outdoor operation. The AMXP-4958VH-D18L60 antenna is supplied with a tilt and swivel mast mount kit.
This allows quick installation at various degrees of up/down tilt for easy alignment.

AMXW-4958VH-D18L60

Electrical Specifications

Frequency range(MHz)

4900～5850

Polarization

Vertical and Horizontal

Gain(dBi)

2×18

Half-power beam width(°)

H:60 V:7

Front-to-back ratio(dB)

≥25

Input Impedance(Ω)

50

VSWR

≤1.5

Isolation between ports(dB)

≥28

Cross-polar ratio(dB)

≥15@0º ≥10@+/-60º

Sidelobe suppression for first sidelobe
above horizon(dB)

15

Maximum input power(W)

100

Lightning protection

DC Ground

Mechanical Specifications

Input connector type

2-N Female

Dimensions-mm (Height/Width/Depth)

405*140*28

Packing size(mm)

440*160*90

Antenna weight (kg)

0.52

Radome material

ABS

Radome color

White

Mechanical tilt(°)

0～10

Operating temperature(°c)

-40～60

Rated Wind Velocity(m/s)

60

Mounting hardware(mm)

30 ～ 50
