5100-5850MHz 17dBi Directional Base station Panel Antenna wireless antenna WLAN antenna

Product Categories

Shenzhen AMEISON Communication Equipment Co.,Ltd.

Contact Now

Name: 51005850MHz 17dBi Directional Base station Panel Antenna wireless antenna WLAN antenna
Brand: AMEISON
Price: 1 USD

Brand Name : AMEISON

Model Number : AMXP-5158VH-D18L90

Certification : ISO 9001: 2008

Place of Origin : China

MOQ : 100

Price : EXW Price

Payment Terms : TT,Paypal,Western Union

Supply Ability : 50,000 Pieces per Month

Delivery Time : 10-20 working days

Packaging Details : PP bag /inner box/master carton or customized

Frequency range（MHz） : 5100～5850

Polarization : Vertical and Horizontal

Gain（dBi） : 18

VSWR : ≤1.7

Maximum input power（W） : 200

Lightning protection : DC Ground

Input connector type : 2-N Female

Mounting hardware（mm） : ￠35～￠75

Contact Now

5100-5850MHz 17dBi Directional Base station Panel Antenna wireless antenna WLAN antenna

Feature:

High gain

Full day working

Optimized dimension

Dual polarization

Application:

5.1 GHz～5.8 GHz WLAN system

5.1 GHz～5.8 GHz ISM frequency band

Public wireless hot spot coverage

AMXP-5158VH-D18L90 Electrical Specifications
Frequency range(MHz)	5100～5850
Polarization	Vertical and Horizontal
Gain(dBi)	2×18
half-power beam width(°)	H:90 V:5
Front-to-back ratio(dB)	≥23
Input Impedance(Ω)	50
VSWR	≤1.7
Isolation between ports	≥28dB
Cross-polar ratio	≥15dB@0º ≥10dB@+/-60º
Sidelobe suppression for first sidelobe above horizon	15 dB
Maximum input power(W)	200
Lightning protection	DC Ground
Mechanical Specifications
Input connector type	2-N Female
Dimensions-mm (Height/Width/Depth)	78011454
Packing size(mm)	820155145
Antenna weight (kg)	3.5
Radome material	UPVC
Radome color	Gray
Mechanical tilt(°)	0～10
Operating temperature(°c)	-40～60
Rated Wind Velocity(m/s)	60
Waterproof Standard	IP67
Mounting way	pole-holding
Mounting hardware(mm)	￠35～￠75

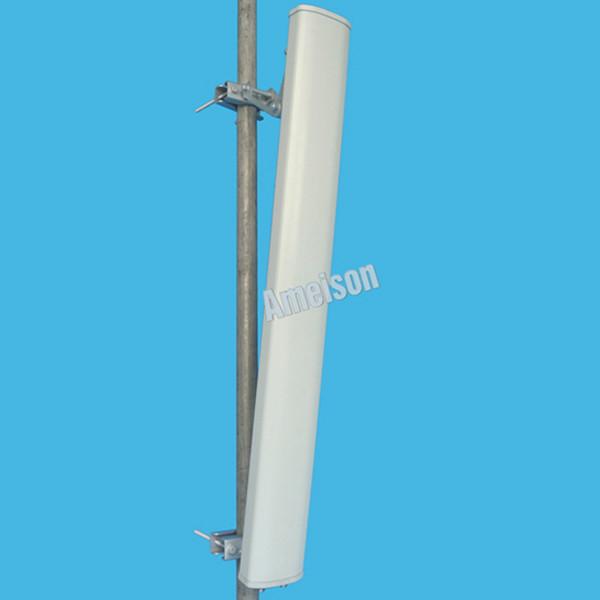

5100-5850MHz 17dBi Directional Base station Panel Antenna wireless antenna WLAN antenna Images
